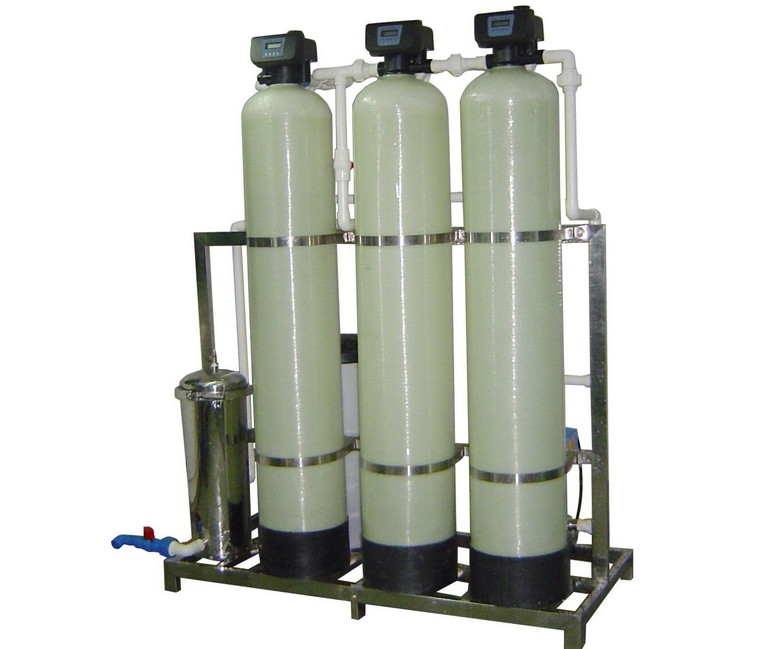

The mixed bed ion exchange column is a common equipment in the water treatment system, mainly used to remove the cations and anions in water to achieve the purpose of softening water quality. Its working principle is to use cation and anion resins to alternate the exchange of cations and anions in water to achieve the purpose of purifying water quality. The regeneration process of the mixed bed is a key step to ensure its long-term stable operation. The following will introduce in detail the resin regeneration operation process and precautions of the mixed bed ion exchange column.

Resin regeneration operation process of mixed bed ion exchange column

Preparation stage:

Check the equipment to confirm that all valves and pipe connections are correct.

Prepare the regeneration agent (usually saltwater or alkali solution) and the water required for regeneration.

Ensure that all operators have received appropriate training and understand the operational procedures and safety measures.

Backwashing stage:

　　Open the backwashing valve to allow the mixed bed to backwash, the purpose of which is to loosen the resin layer andremove the attached dirt and impurities.

The backwashing time is determined by the thickness of the resin layer and the impurity situation, usually 30 minutes to 1 hour.

Regeneration stage:

Choose the appropriate regeneration agent according to the type of resin to be regenerated.

Inject the regeneration agent into the resin layer, usually the injection amount of the regeneration agent is 1.2-1.5 times the volume of the resin.

During the regeneration process, maintain the flow of the resin layer to promote the full contact between the regeneration agent and the resin.

The regeneration time depends on the regeneration capacity of the resin and the required regeneration degree, usually 1-2 hours.

After the regeneration is completed, stop injecting the regeneration agent and continue flowing for a period of time to ensure that there is no residual regeneration agent in the resin layer.

Rinse stage:

Place the regenerated resin into the rinse program, the purpose of which is to remove the residual regeneration agent in the resin layer to ensure that the resin is in the best state after regeneration.

The rinse time is usually 10-20 minutes, which can be adjusted according to the specific situation.

Displacement stage:

Inject fresh water into the resin layer to displace the residual regeneration agent in the resin layer, ensuring that the resin layer is clean.

The displacement time is usually 10-20 minutes.

Regeneration completed:

According to the need, clean the mixed bed to ensure that there is no residual regeneration agent or impurities in the resin layer.

Check the operating status of the mixed bed and confirm that the resin layer has returned to normal working condition.

Precautions

Safe operation: During the regeneration process, ensure that the operators wear appropriate personal protective equipment, such as protective glasses and gloves, to avoid contact with the regeneration agent.

　　Water quality monitoring: Regularlydetect the water quality before and after regeneration to ensure that the water quality meets the expected standards.

　　Equipment maintenance: Regularly check the operating status of the mixed bed and replace the failed resin in time to maintain the good operating condition of the equipment.

Follow the procedure: Operate strictly according to the operational procedure to avoid resin failure or equipment damage due to improper operation.

Environmental impact: The waste liquid produced during the regeneration process should be properly disposed of to avoid environmental pollution.

By following the above steps and precautions, the resin regeneration operation of the mixed bed ion exchange column can be ensured to be safe and efficient, thereby guaranteeing the long-term stable operation of the water treatment system.
